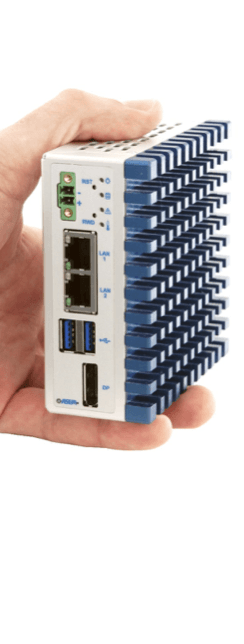

BM100 Compact fanless IPC based on Intel® Apollo LakeTM platform

  • Compact Fanless IPC with anodized aluminium chassis and Book, Wall and DIN rail mounting

  • Compact size 10x10x4.1cm

  • Ideal for PC Based Automation, IIoT gateway, data logging

  • Operating temperature up to 0°÷55°C

  • Intel® Apollo Lake platform with

    • –  Atom® x7-E3950 1,6GHz (Burst 2,0GHz) 4 core/4 thread – 2MB cache processor

    • –  Atom® x5-E3930 1,3GHz (Burst 1,8GHz) 2 core/2 thread – 2MB cache processor

  • System memory

– LP-DDR4 RAM (2/4/8 GB) soldered

  • Mass storage
    – M.2 key B connector with SATA III interface for SSD M.2 size 2242– From 32 GB to 256 GB 3D TLC

  • Interfaces

    • –  2 x Ethernet 10/100/1000 Mbps (Intel® I210)

    • –  2 x USB 3.0 (max 0,9A on each port)

    • –  1 x video Display Port V1.2 (max resolution 4096×2160 – 60Hz)

  • Watch Dog

  • LEDs: Power ON, SSD activity, Temp./Battery alarm, W.Dog

  • Buttons: 1 x System reset, 1 x Watch Dog reset

  • 24V DC isolated power supply and RTC battery

  • Microsoft Windows 10 IoT Enterprise 2016 LTSB Entry 64bit or Linux
